DYNAPAC - Tampon kombinovani valjci

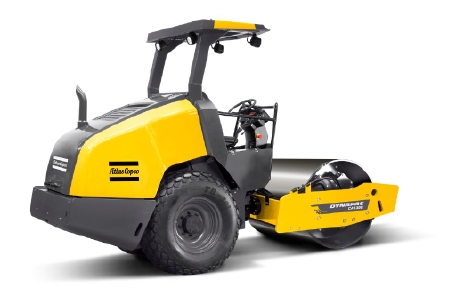

Dynapac CA1300D

Technical Specifications
Model type D - Smooth drum
Masses
Operating mass, incl. ROPS 4600 kg
Module mass, front 1800 kg
Module mass, rear 2750 kg
Max. operating mass 5500 kg
Dimensions
Drum width 1370 mm
Traction
Speed 0 - 6 km/h
Vertical oscillation ±9°
Tyre size (8 ply) 12,5 x 20
Theoretical gradeability 55 %
Compaction
Static linear load 13 kg
Nominal amplitude 1.7 mm
Vibration frequency 35 Hz
Centrifugal force 89 kN
Engine
Engine brand / model Kubota V 3307 CR-TE4
Power rating 55 kW (75 hp) at 2200 rpm
Hydraulic system
Driving Axial piston pump with variable displacement. Axial piston motor with variable displacement. Axial piston motor with constant displacement.
Vibration Gear pump/ motor with constant displacement
Steering Gear pump with constant displacement
Service brake Hydrostatic in forward and reverse lever
Parking/ Emergency brake Failsafe multidisc brake in rear axle and front drum motor.
Capacities
Fuel tank capacity 117 l
Za više informacija posetite sajt proizvođača

Dynapac CA1300PD w. blade

Technical Specifications
Model type PDB - Padfoot drum with blade
Masses
Operating mass, incl. ROPS 5200 kg
Module mass, front 2250 kg
Module mass, rear 2750 kg
Max. operating mass 5200 kg
Dimensions
Drum width 1370 mm
Traction
Speed 0 - 6 km/h
Vertical oscillation ±9°
Tyre size (8 ply) 12,5 x 20
Number of pads 72
Pad height 76 mm
Pad area 53 cm2
Theoretical gradeability 52 %
Compaction
Static linear load 13 kg
Nominal amplitude 1.5 mm
Vibration frequency 35 Hz
Centrifugal force 89 kN
Engine
Engine brand / model Kubota V 3307 CR-TE4
Power rating 55 kW (75 hp) at 2200 rpm
Hydraulic system
Driving Axial piston pump with variable displacement. Axial piston motor with variable displacement. Axial piston motor with constant displacement.
Vibration Gear pump/ motor with constant displacement
Steering Gear pump with constant displacement
Service brake Hydrostatic in forward and reverse lever
Parking/ Emergency brake Failsafe multidisc brake in rear axle and front drum motor.
Capacities
Fuel tank capacity 117 l
Za više informacija posetite sajt proizvođača

Dynapac CA2500D

Technical Specifications
Model type D - Smooth drum
Masses
Operating mass, incl. ROPS 10100 kg
Operating mass, incl. CAB 10300 kg
Module mass, front 5600 kg
Module mass, rear 4700 kg
Max. operating mass 11900 kg
Dimensions
Drum width 2130 mm
Traction
Speed 4 - 12 km/h
Vertical oscillation ±9°
Tyre size (8 ply) 23,1 x 26 AW
Theoretical gradeability 51 %
Compaction
Static linear load 26 kg
Nominal amplitude, high 1.8 mm
Nominal amplitude, low 0.9 mm
Vibration frequency, high 33 Hz
Vibration frequency, low 34 Hz
Centrifugal force, high 250 kN
Centrifugal force, low 130 kN
Engine
Engine brand / model Cummins QSB 4.5, IIIB/T4i
Power rating 97 kW (132 hp) at 2200 rpm
Engine brand / model (optional) Cummins QSB 4.5, IIIA/T3
Power rating (optional engine) 82 kW (110 hp) at 2200 rpm
Hydraulic system
Driving Hydrostatic
Vibration Hydrostatic
Steering Hydrostatic
Service brake Hydrostatic in forward and reverse lever
Parking/ Emergency brake Failsafe multidisc brake in drum gear box and in rear axle
Capacities
Fuel tank capacity 272 l
Za više informacija posetite sajt proizvođača

Dynapac CA2800D

Technical Specifications
Model type D - Smooth drum
Masses
Operating mass, incl. ROPS 12000 kg
Operating mass, incl. CAB 12200 kg
Module mass, front 7600 kg
Module mass, rear 4600 kg
Max. operating mass 12000 kg
Dimensions
Drum width 2130 mm
Traction
Speed 4 - 12 km/h
Vertical oscillation ±9°
Tyre size (8 ply) 23,1 x 26 AW
Theoretical gradeability 55 %
Compaction
Static linear load 36 kg
Nominal amplitude, high 1.8 mm
Nominal amplitude, low 0.9 mm
Vibration frequency, high 33 Hz
Vibration frequency, low 34 Hz
Centrifugal force, high 250 kN
Centrifugal force, low 130 kN
Engine
Engine brand / model Cummins QSB 4.5, IIIB/T4i
Power rating 97 kW (132 hp) at 2200 rpm
Hydraulic system
Driving Hydrostatic
Vibration Hydrostatic
Steering Hydrostatic
Service brake Hydrostatic in forward and reverse lever
Parking/ Emergency brake Failsafe multidisc brake in drum gear box and in rear axle
Capacities
Fuel tank capacity 272 l
Za više informacija posetite sajt proizvođača

Dynapac CA610D

Technical Specifications
Model type D - Smooth drum
Masses
Operating mass, incl. ROPS 20700 kg
Operating mass, incl. CAB 20850 kg
Module mass, front 14050 kg
Module mass, rear 6650 kg
Max. operating mass 21000 kg
Dimensions
Drum width 2130 mm
Traction
Speed 0 - 11 km/h
Vertical oscillation ±9°
Tyre size (8 ply) 23,1 x 26 AW
Theoretical gradeability 43 %
Compaction
Static linear load 66 kg
Nominal amplitude, high 1.8 mm
Nominal amplitude, low 1.1 mm
Vibration frequency, high 29 Hz
Vibration frequency, low 31 Hz
Centrifugal force, high 317 kN
Centrifugal force, low 231 kN
Engine
Engine brand / model Cummins B5.9-VE-TAA
Power rating 129 kW (173 hp) at 2200 rpm
Power rating (optional engine) *
Hydraulic system
Driving Axial piston pump with variable displacement. Axial piston motors (2) with variable displacement.
Vibration Axial piston pump with variable displacement. Axial piston motors (2) with variable displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever
Parking/ Emergency brake Failsafe multidisc brake in drum gear box and in rear axle
Capacities
Fuel tank capacity 320 l
Za više informacija posetite sajt proizvođača

Dynapac CT3000

Technical Specifications
Model type PD - Padfoot drum
Masses
Operating mass, incl. CAB 22550 kg
Module mass, front 10600 kg
Module mass, rear 11950 kg
Dimensions
Drum width 1000 mm
Traction
Speed 0 - 20 km/h
Vertical oscillation ±12°
Tyre size (12 ply) 11,0 x 22
Number of pads 60
Pad height 185 mm
Pad area 200 cm2
Engine
Engine brand / model Cummins QSB 6.7, IIIB/T4f
Power rating 194 kW (260 hp) at 2200 rpm
Hydraulic system
Service brake Hydraulic on differential
Parking/ Emergency brake Caliper on the disc
Capacities
Fuel tank capacity 400 l
