HIDRAULIČNI ČEKIĆI - HB – Teška serija

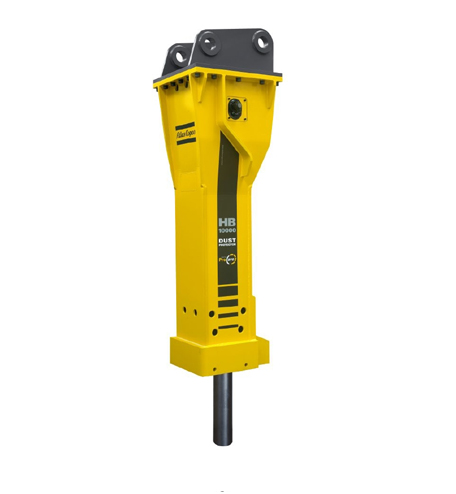

HB 10000 DP

Technical Specifications
Carrier weight class 85 - 140 t
Service weight ** 10000 kg
Oil flow 450 - 530 l/min
Operating pressure 160 - 180 bar
Impact rate 250 - 380 blows/min
Working tool diameter 240 mm
Working length of tool 880 mm
Max. hydraulic input power 159 kW
Sound power level guaranteed 123 dB(A)
Sound pressure level (r=10m) *** 93 dB(A)

HB 2000

Technical Specifications
Carrier weight class 85 - 140 t
Service weight ** 10000 kg
Oil flow 450 - 530 l/min
Operating pressure 160 - 180 bar
Impact rate 250 - 380 blows/min
Working tool diameter 240 mm
Working length of tool 880 mm
Max. hydraulic input power 159 kW
Sound power level guaranteed 123 dB(A)
Sound pressure level (r=10m) *** 93 dB(A)

HB 2000 DP

Technical Specifications
Carrier weight class 40 - 70 t
Service weight ** 4100 kg
Oil flow 250 - 320 l/min
Operating pressure 160 - 180 bar
Impact rate 280 - 550 blows/min
Working tool diameter 180 mm
Working length of tool 820 mm
Max. hydraulic input power 96 kW
Sound power level guaranteed 123 dB(A)
Sound pressure level (r=10m) *** 93 dB(A)

HB 2500

Technical Specifications
Carrier weight class 27 - 46 t
Service weight ** 2500 kg
Oil flow 170 - 220 l/min
Operating pressure 160 - 180 bar
Impact rate 280 - 580 blows/min
Working tool diameter 155 mm
Working length of tool 680 mm
Max. hydraulic input power 66 kW
Sound power level guaranteed 121 dB(A)
Sound pressure level (r=10m) *** 91 dB(A)

HB 2500 DP

Technical Specifications
Carrier weight class 27 - 46 t
Service weight ** 2500 kg
Oil flow 170 - 220 l/min
Operating pressure 160 - 180 bar
Impact rate 280 - 580 blows/min
Working tool diameter 155 mm
Working length of tool 640 mm
Max. hydraulic input power 66 kW
Sound power level guaranteed 121 dB(A)
Sound pressure level (r=10m) *** 92 dB(A)

HB 3100

Technical Specifications
Carrier weight class 32 - 52 t
Service weight ** 3100 kg
Oil flow 210 - 270 l/min
Operating pressure 160 - 180 bar
Impact rate 280 - 560 blows/min
Working tool diameter 165 mm
Working length of tool 745 mm
Max. hydraulic input power 81 kW
Sound power level guaranteed 119 dB(A)
Sound pressure level (r=10m) *** 90 dB(A)

HB 3100 DP

Technical Specifications
Carrier weight class 32 - 52 t
Service weight ** 3100 kg
Oil flow 210 - 270 l/min
Operating pressure 160 - 180 bar
Impact rate 280 - 560 blows/min
Working tool diameter 165 mm
Working length of tool 700 mm
Max. hydraulic input power 81 kW
Sound power level guaranteed 119 dB(A)
Sound pressure level (r=10m) *** 90 dB(A)

HB 3600

Technical Specifications
Carrier weight class 35 - 63 t
Service weight ** 3600 kg
Oil flow 240 - 300 l/min
Operating pressure 160 - 180 bar
Impact rate 280 - 560 blows/min
Working tool diameter 170 mm
Working length of tool 770 mm
Max. hydraulic input power 90 kW
Sound power level guaranteed 121 dB(A)
Sound pressure level (r=10m) *** 92 dB(A)

HB 4100

Technical Specifications
Carrier weight class 35 - 63 t
Service weight ** 3600 kg
Oil flow 240 - 300 l/min
Operating pressure 160 - 180 bar
Impact rate 280 - 560 blows/min
Working tool diameter 170 mm
Working length of tool 720 mm
Max. hydraulic input power 90 kW
Sound power level guaranteed 121 dB(A)
Sound pressure level (r=10m) *** 92 dB(A)

HB 4100 DP

Technical Specifications
Carrier weight class 40 - 70 t
Service weight ** 4100 kg
Oil flow 250 - 320 l/min
Operating pressure 160 - 180 bar
Impact rate 280 - 550 blows/min
Working tool diameter 180 mm
Working length of tool 820 mm
Max. hydraulic input power 96 kW
Sound power level guaranteed 123 dB(A)
Sound pressure level (r=10m) *** 93 dB(A)

HB 4700

Technical Specifications
Carrier weight class 40 - 70 t
Service weight ** 4100 kg
Oil flow 250 - 320 l/min
Operating pressure 160 - 180 bar
Impact rate 280 - 550 blows/min
Working tool diameter 180 mm
Working length of tool 775 mm
Max. hydraulic input power 96 kW
Sound power level guaranteed 123 dB(A)
Sound pressure level (r=10m) *** 93 dB(A)

HB 4700 DP

Technical Specifications
Carrier weight class 45 - 80 t
Service weight ** 4700 kg
Oil flow 260 - 360 l/min
Operating pressure 160 - 180 bar
Impact rate 280 - 540 blows/min
Working tool diameter 190 mm
Working length of tool 860 mm
Max. hydraulic input power 108 kW
Sound power level guaranteed 126 dB(A)
Sound pressure level (r=10m) *** 96 dB(A)

HB 5800

Technical Specifications
Carrier weight class 45 - 80 t
Service weight ** 4700 kg
Oil flow 260 - 360 l/min
Operating pressure 160 - 180 bar
Impact rate 280 - 540 blows/min
Working tool diameter 190 mm
Working length of tool 800 mm
Max. hydraulic input power 108 kW
Sound power level guaranteed 126 dB(A)
Sound pressure level (r=10m) *** 96 dB(A)

HB 5800 DP

Technical Specifications
Carrier weight class 58 - 100 t
Service weight ** 5800 kg
Oil flow 310 - 390 l/min
Operating pressure 160 - 180 bar
Impact rate 280 - 480 blows/min
Working tool diameter 200 mm
Working length of tool 865 mm
Max. hydraulic input power 117 kW
Sound power level guaranteed 121 dB(A)
Sound pressure level (r=10m) *** 92 dB(A)

HB 7000

Technical Specifications
Carrier weight class 58 - 100 t
Service weight ** 5800 kg
Oil flow 310 - 390 l/min
Operating pressure 160 - 180 bar
Impact rate 280 - 480 blows/min
Working tool diameter 200 mm
Working length of tool 810 mm
Max. hydraulic input power 117 kW
Sound power level guaranteed 121 dB(A)
Sound pressure level (r=10m) *** 92 dB(A)

HB 7000 DP

Technical Specifications
Carrier weight class 70 - 120 t
Service weight ** 7000 kg
Oil flow 360 - 450 l/min
Operating pressure 160 - 180 bar
Impact rate 280 - 450 blows/min
Working tool diameter 210 mm
Working length of tool 935 mm
Max. hydraulic input power 135 kW
Sound power level guaranteed 121 dB(A)
Sound pressure level (r=10m) *** 92 dB(A)
