Električne igle

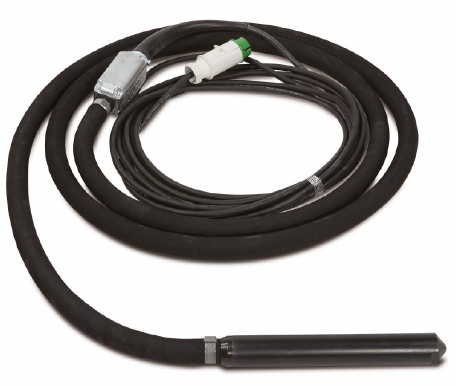

AX36: AX electric pokers
| Technical Specifications | |
|---|---|
| Tube diameter | 36 mm |
| Voltage (V) | 42V-3-200Hz |
| Power | 300 W |
| Tube length | 322 mm |
| Hose length | 5 m |
| Cable length | 10 m |
| Tube weight | 2.1 kg |
| Total weight | 12 kg |
| Frequency in concrete (vpm) | 12000 |
| Amperage at 42V (A) | 6.2 |
| Vibration type | Eccentric |
| Centrifugal force | 1350 N |
| Amplitude | 2.1 mm |
| Vibration value* | 3.9 m/s² |
| Noise level | 70 dB(A) |
Za više informacija posetite sajt proizvođača

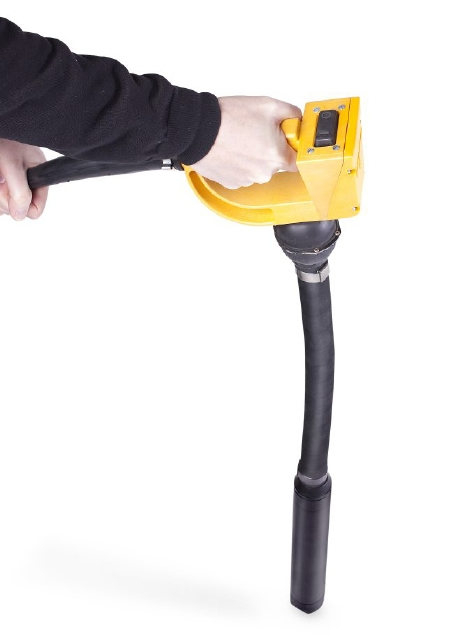

AX40E: AX electric pokers with devibrated handle
| Technical Specifications | |
|---|---|
| Tube diameter | 40 mm |
| Voltage (V) | 42V-3-200Hz |
| Power | 240 W |
| Tube length | 320 mm |
| Hose length | 0.5 m |
| Cable length | 10 m |
| Tube weight | 2.1 kg |
| Total weight | 8.1 kg |
| Frequency in concrete (vpm) | 12000 |
| Amperage at 42V (A) | 4.5 |
| Vibration type | Eccentric |
| Centrifugal force | 1400 N |
| Amplitude | 2.5 mm |
| Vibration value* | 0.51 m/s² |
| Noise level | 78 dB(A) |
Za više informacija posetite sajt proizvođača

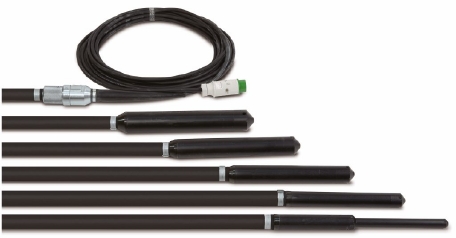

AX90: AN electrical poker
| Technical Specifications | |
|---|---|
| Tube diameter | 90 mm |
| Voltage (V) | 42V-3-200Hz |
| Power | 1000 W |
| Tube length | 566 mm |
| Hose length | 5 m |
| Cable length | 15 m |
| Tube weight | 18 kg |
| Total weight | 26.6 kg |
| Frequency in concrete (vpm) | 6000 |
| Amperage at 42V (A) | 21 |
| Vibration type | 7100 |
| Centrifugal force | 5 N |
| Amplitude | 5 mm |
| Vibration value* | 76 m/s² |
| Noise level | 79 dB(A) |
Za više informacija posetite sajt proizvođača

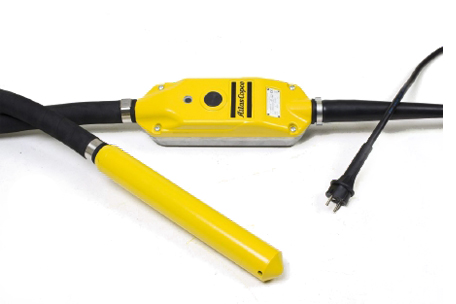

SMART40: SMART electric pokers
| Technical Specifications | |
|---|---|
| Tube diameter | 40 mm |
| Input Voltage, V+/-10 | 115V-1-50/60Hz ETL USA |
| Power | 400 W |
| Tube length | 320 mm |
| Hose length | 5 m |
| Cable length | 15 m |
| Tube weight | 2.3 kg |
| Total weight | 14.1 kg |
| Frequency in concrete (vpm) | 12000 |
| Amperage (A) | 5 |
| Vibration type | Eccentric |
| Centrifugal force | 1600 N |
| Amplitude | 2.6 mm |
| Vibration value* | 3.7 m/s² |
| Noise level | 78 dB(A) |
Za više informacija posetite sajt proizvođača
